Your Best Full Plastic Downlight Supplier In China
Versatile, practical and designed to enhance residential spaces.

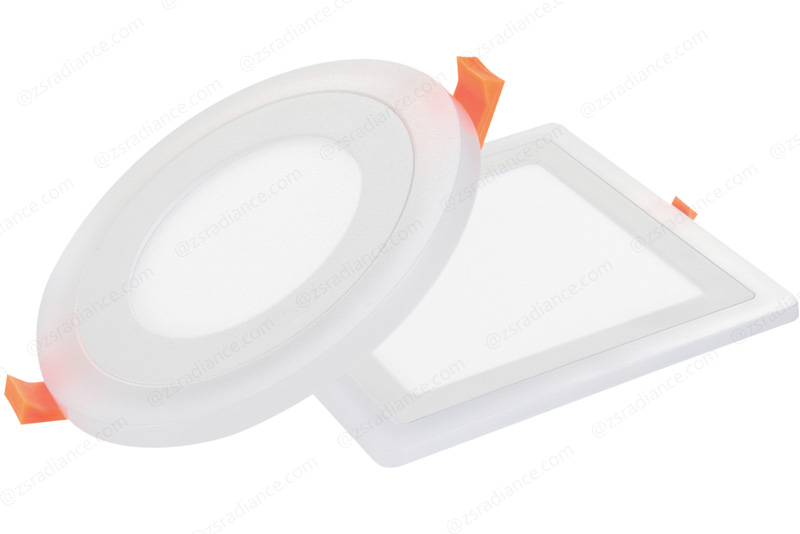

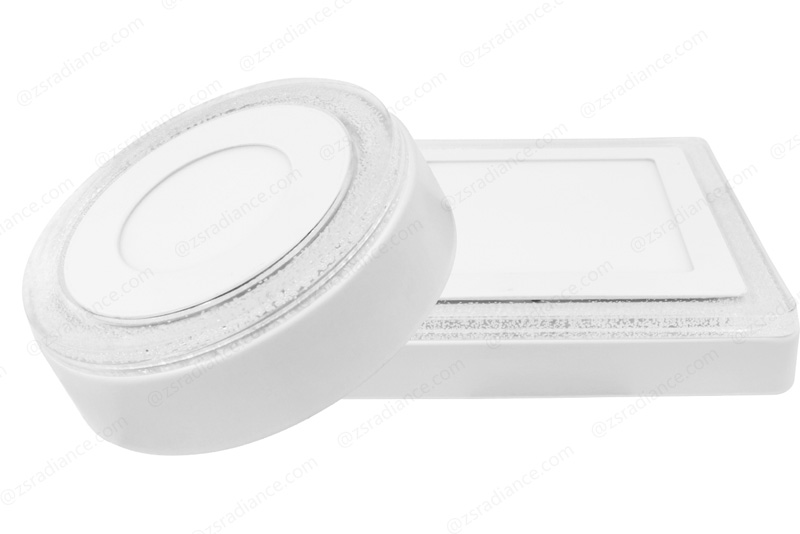

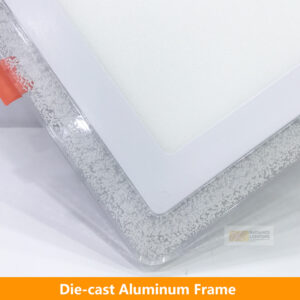

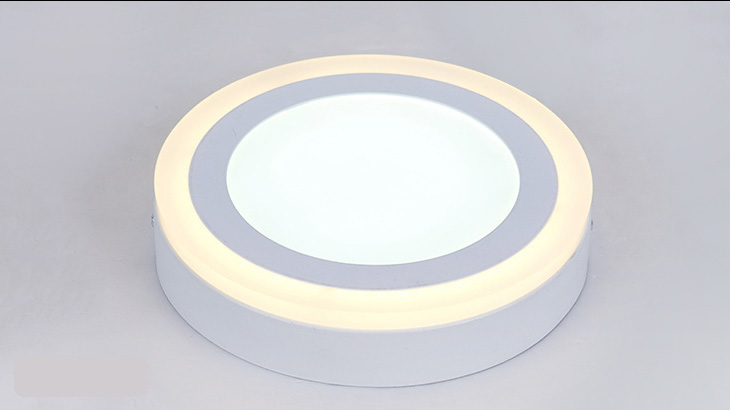

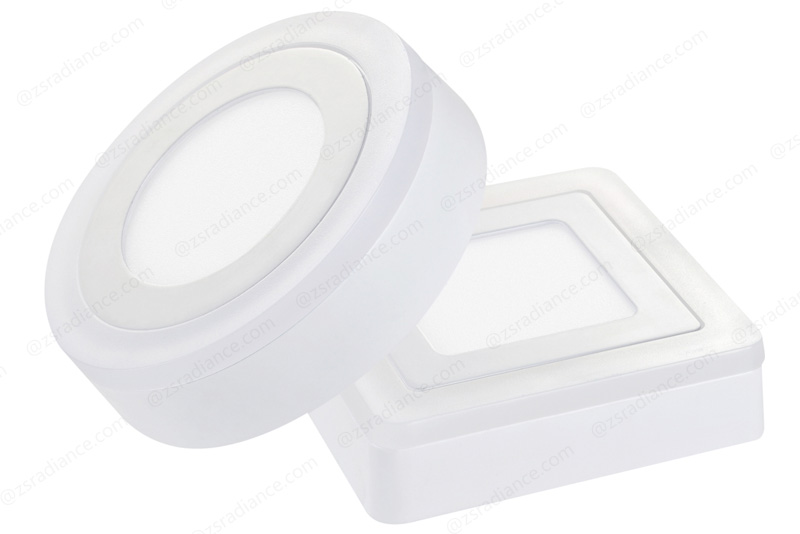

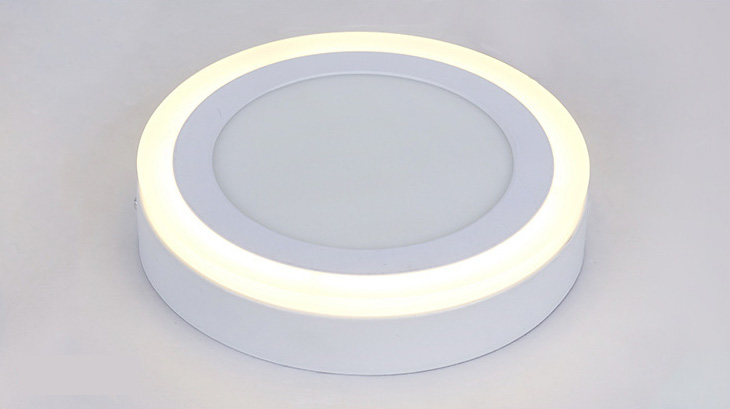

Double Colors LED Panel Light (Bubble) Aluminum Frame With Acrylic
Radiance SMD DOB full plastic downlights / panel lights are a professional LED luminaire with a stylish outlook design. The SMD DOB full plastic downlights/panel lights come in different sizes and power ratings to offer flexibility in use. This product features a high efficiency luminaire and provides better light uniformity. Easy to install and an ideal solution for ceiling and wall mounting applications including residential areas, corridors and entrances, retail shops, and workplace areas.
Shape and Type Selection Support :
Product Features:
● Super bright light output & well controlled beam angle
● Safe and reliable
● Easy maintenance,wide range more energy-saving
● Instant start no flickeringno humming
● High shock-proofing & Vibration resistant design
· Input Volatage：AC85-264V
· Driver Type：DOB -No Isolated
· IP Rate：IP20
· Power Factor：> 0.5
· CRI：> RA80
· Frequency：50/60 Hz

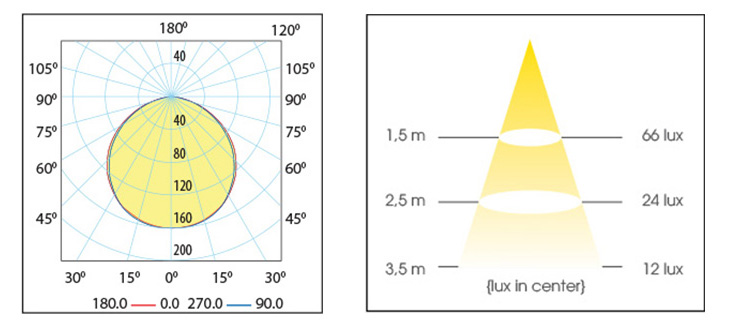

· Beam Angle：120°
· Chip Type : SMD2835

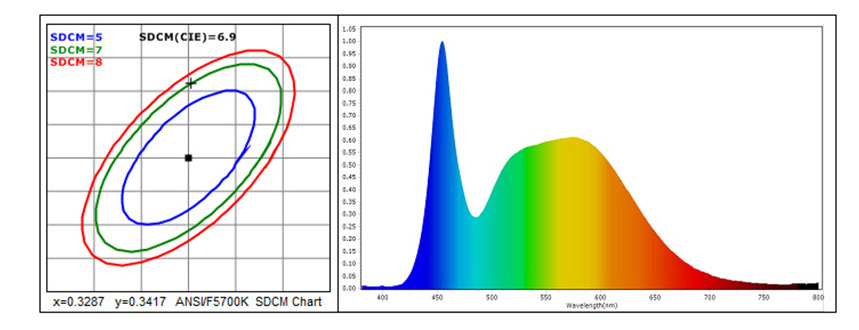

· SDCM：<5
· Lifespan：>20000hours
· Lamp Function：Support Dimmable
· Flame Retardant Rate：V2

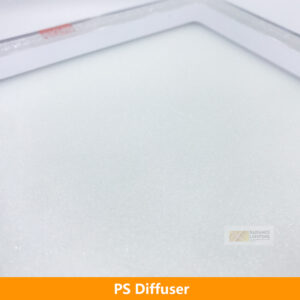

· Diffuser Materials：PS
· Housing Materials：PP
· Usage：Home indoor / Commercial
· Color Temperature：3000K/4000K/6500K
· Body Color：White / Black / Customized
· Working temperature：-30℃～70℃
· Relative Humidity: 10 – 90%
· Warranty：>2 Years
Product Video
Product Specification

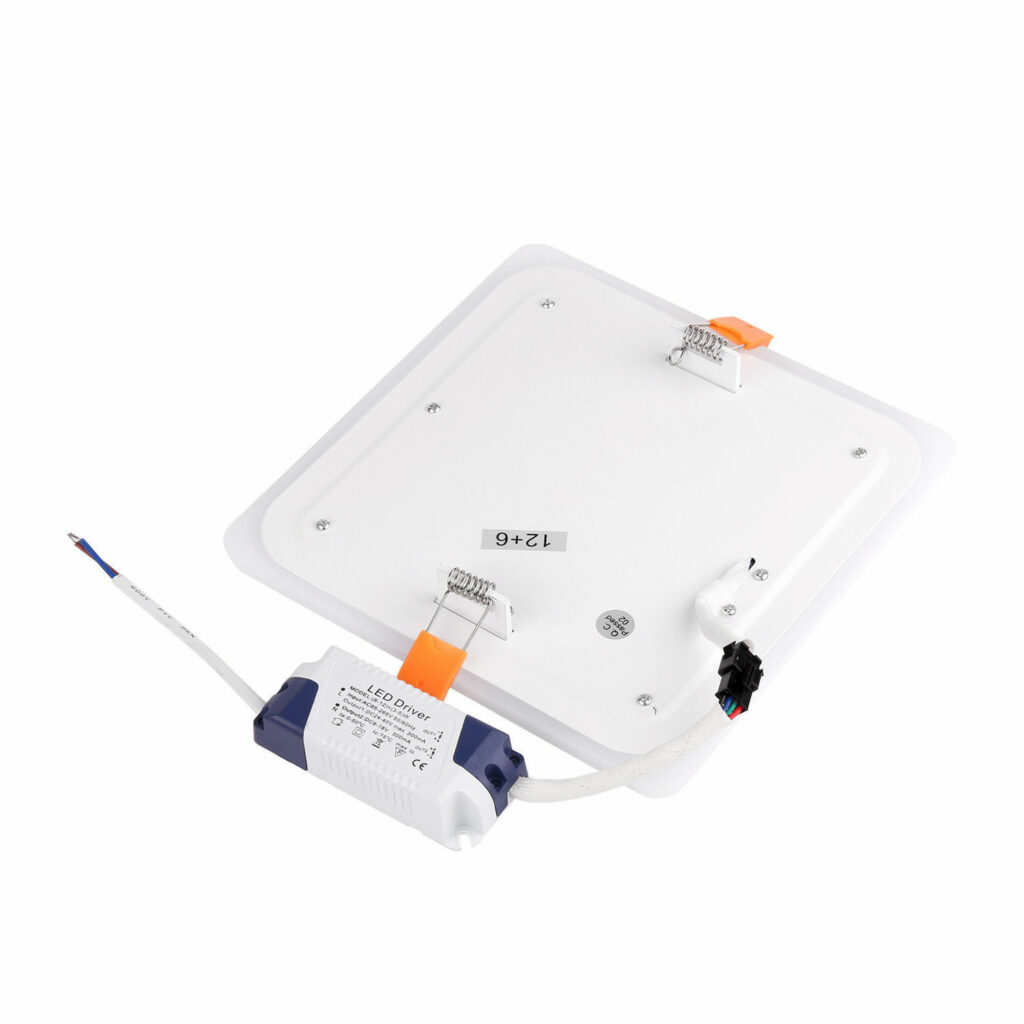

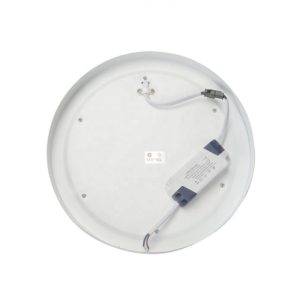

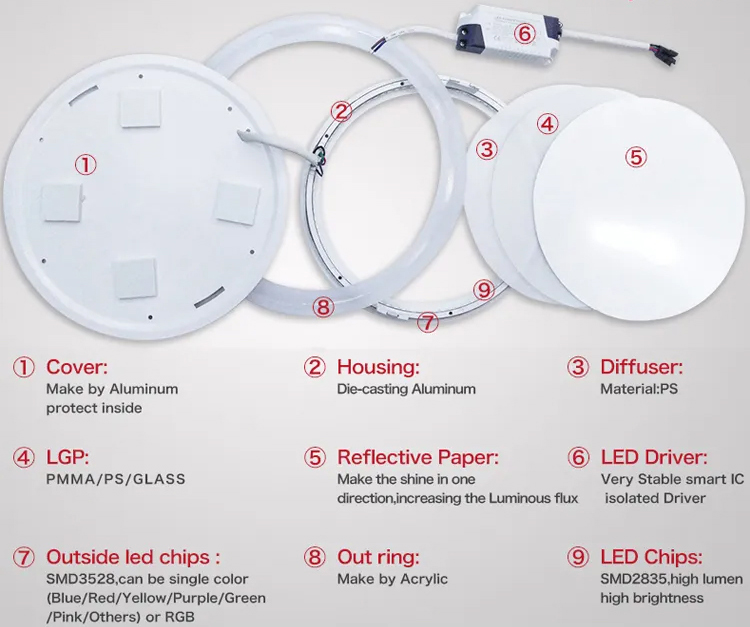

Product Details
Product Show & Information

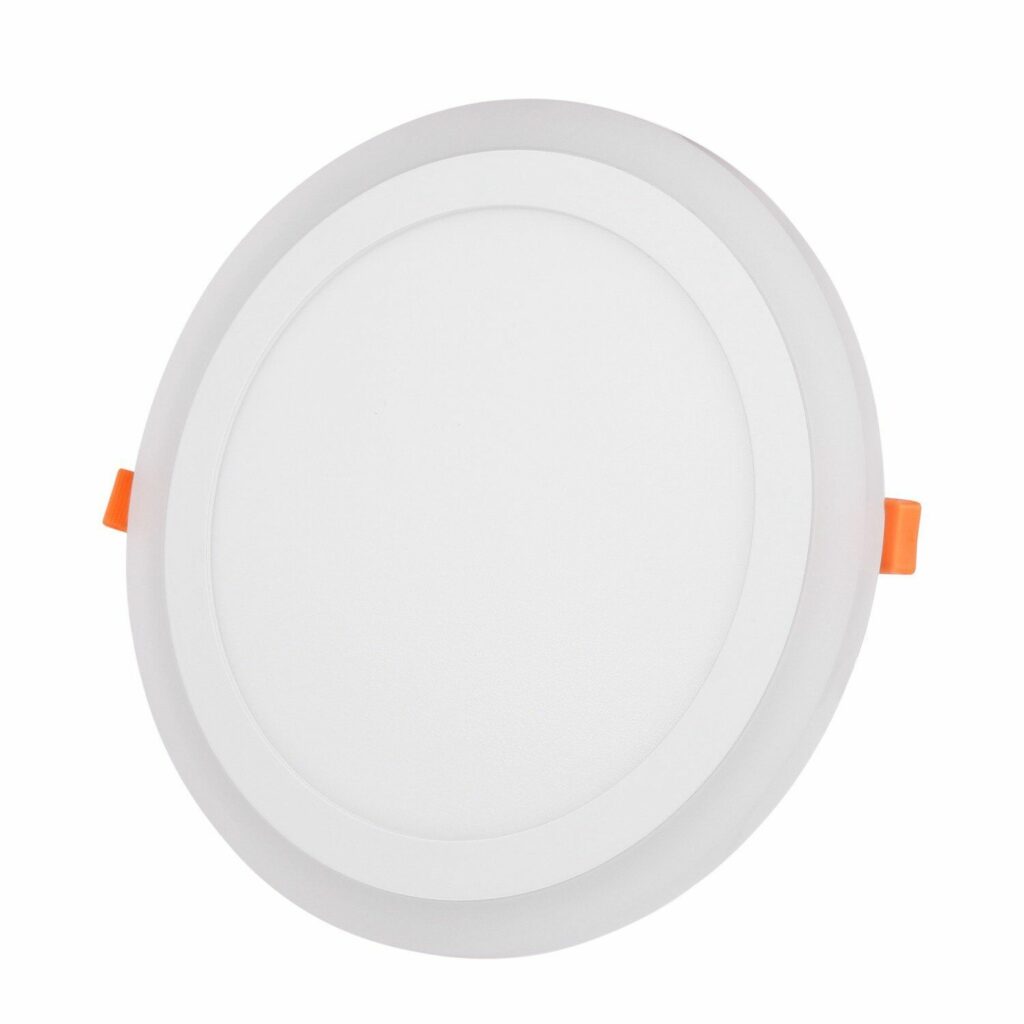

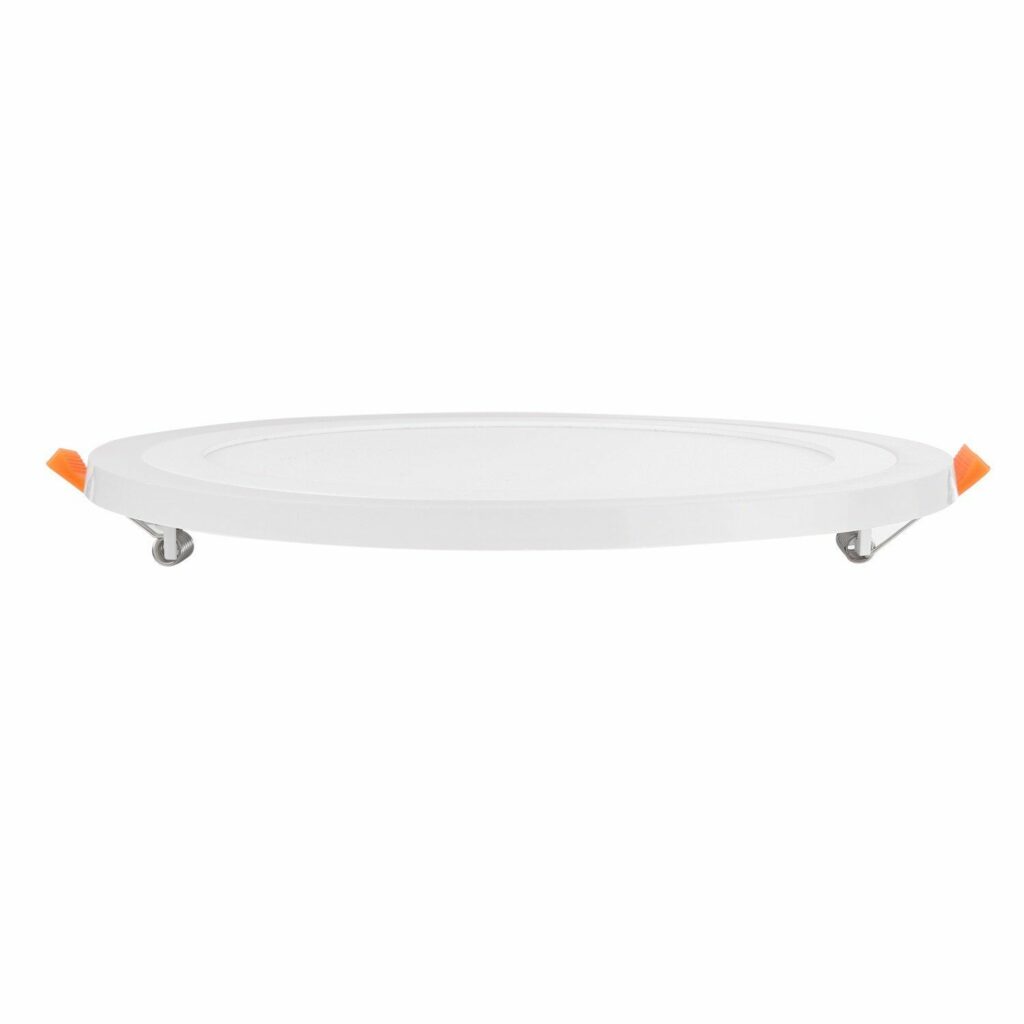

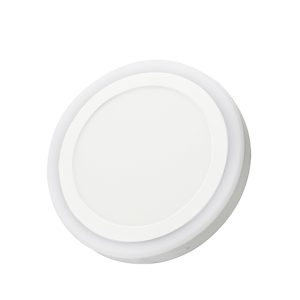

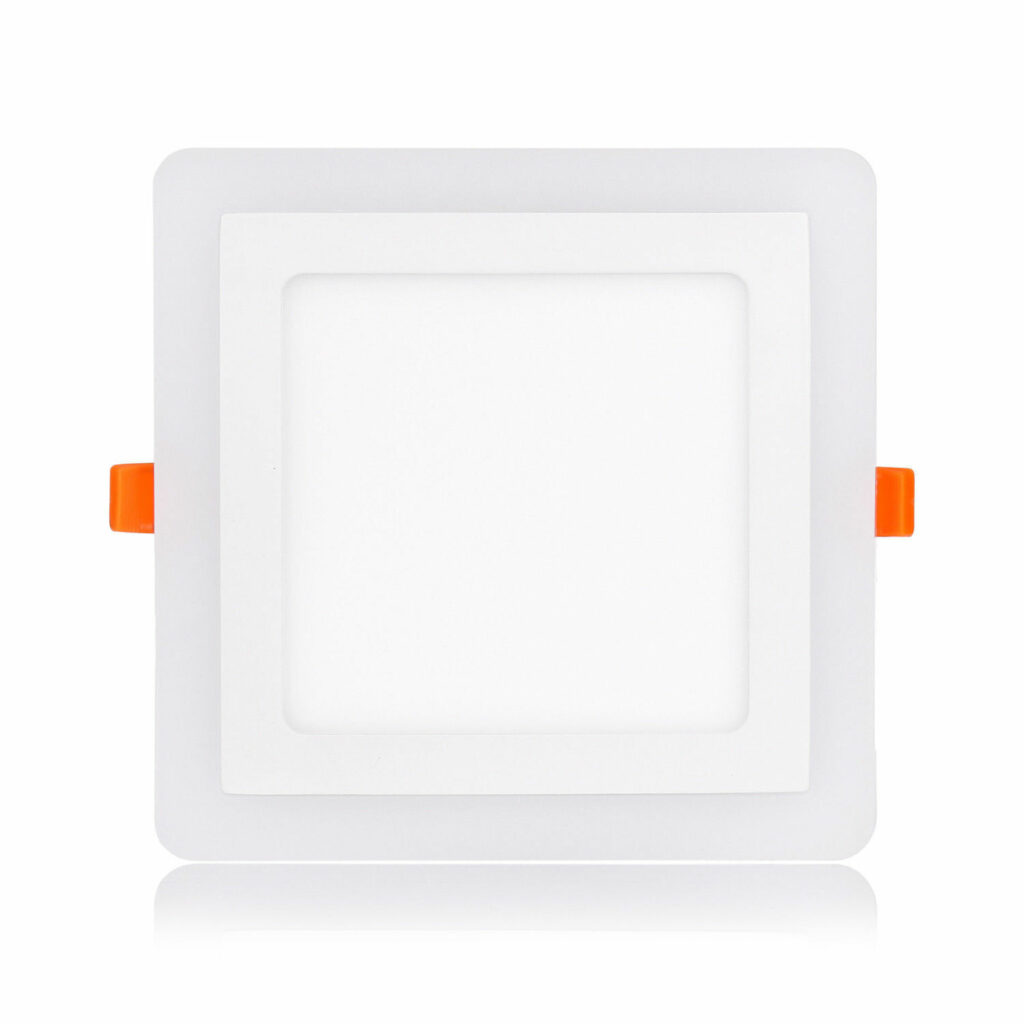

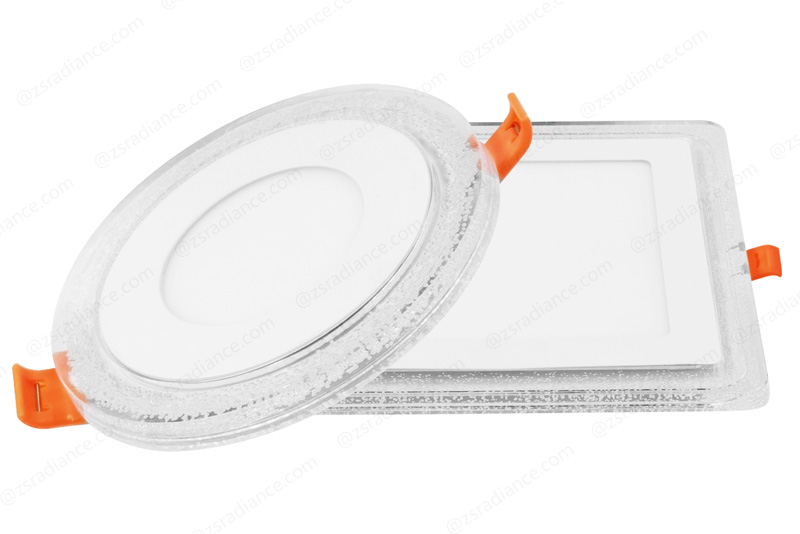

Recessed - Slim -Round & Square -Double Color ( With Bubble )LED Aluminum Downlight
| Type & Shape | Model NO. | Wattage （W） | Lumen （lm/w） | Housing Size （mm） | Cutting Size （mm） | Packing Size （cm） | PCS / CTN (Pcs) |
|---|---|---|---|---|---|---|---|
| Recessed-Round | RD2185AY3+3W | 3+3W | 45-55LM/W | ф105 | φ70 | 60*22.5*25 | 50 |
| Recessed-Round | RD2185AY6+3W | 6+3W | 60-70LM/W | φ145 | φ100 | 46*35.4*33 | 40 |
| Recessed-Round | RD2185AY12+4W | 12+4W | 70-75LM/W | ф195 | φ155 | 46*42.5*22 | 20 |
| Recessed-Round | RD2185AY18+6W | 18+6W | 75-80LM/W | ф245 | φ205 | 56*45*27 | 20 |

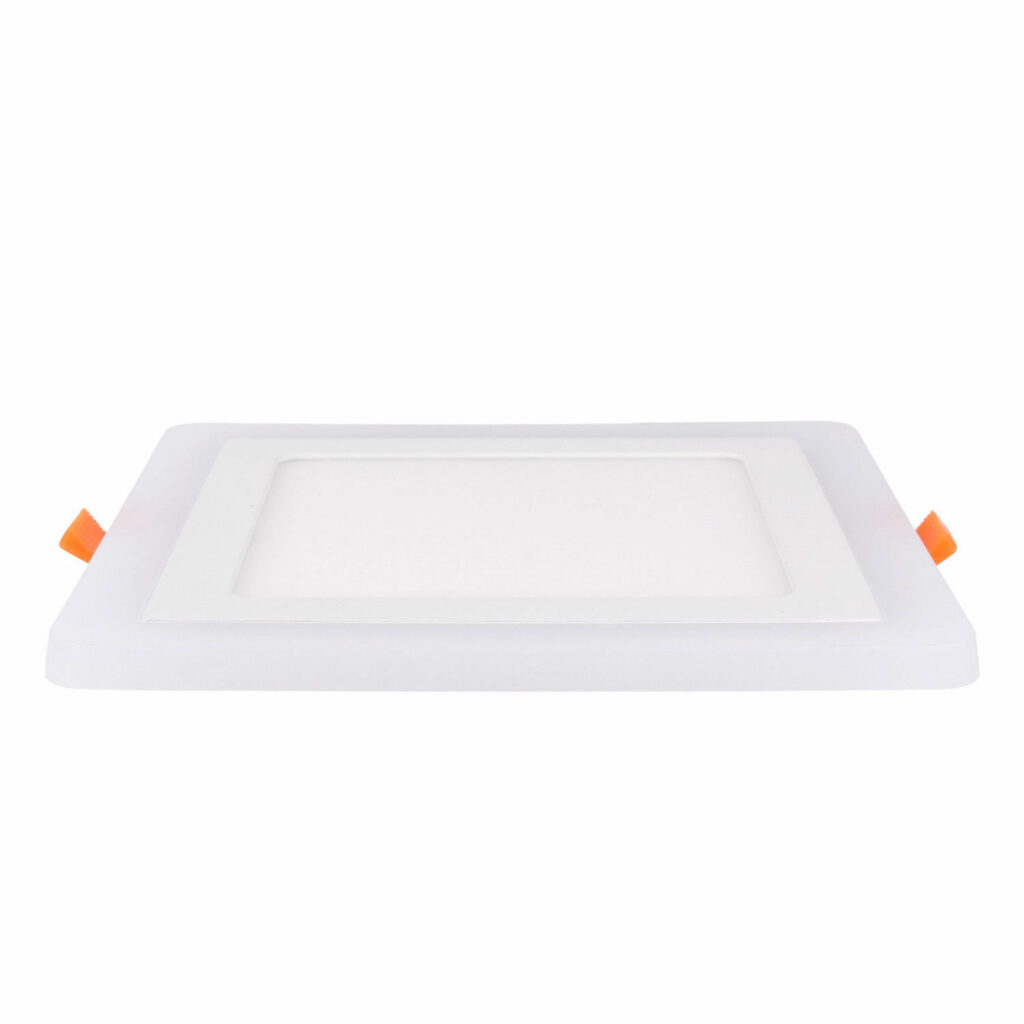

| Recessed-Square | RD2185AF3+3W | 3+3W | 45-55LM/W | 105*105 | 70*70 | 60*22.5*25 | 50 |
| Recessed-Square | RD2185AF6+3W | 6+3W | 60-70LM/W | 145*145 | 105*105 | 46*35.4*33 | 40 |
| Recessed-Square | RD2185AF12+4W | 12+4W | 70-75LM/W | 195*195 | 155*155 | 46*42.5*22 | 20 |
| Recessed-Square | RD2185AF18+6W | 18+6W | 75-80LM/W | 245*245 | 205*205 | 56*45*27 | 20 |

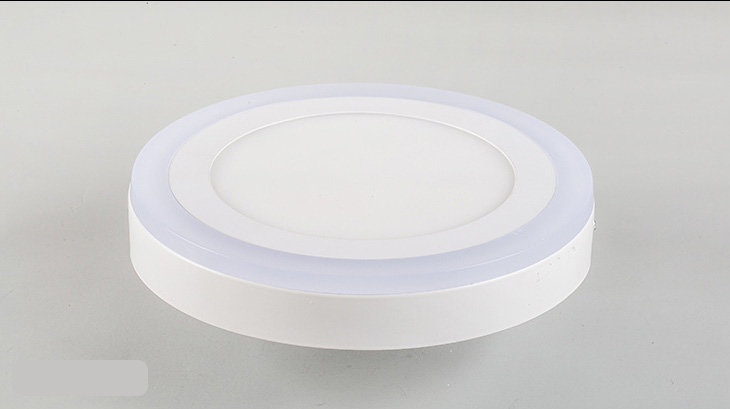

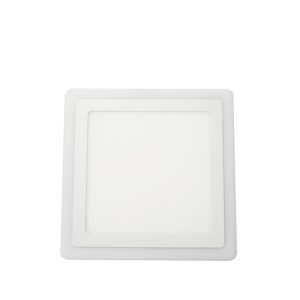

Surface - Round & Square -Double Color ( With Bubble )LED Aluminum Downlight
| Type & Shape | Model NO. | Wattage （W） | Lumen （lm/w） | Housing Size （mm） | Height （mm） | Packing Size （cm） | PCS / CTN (Pcs) |
|---|---|---|---|---|---|---|---|
| Surface-Round | RD2185MY3+3W | 3+3W | 45-55LM/W | ф105 | H32/H38 | 60*22.5*25 | 50 |
| Surface-Round | RD2185MY6+3W | 6+3W | 60-70LM/W | φ145 | H32/H38 | 46*35.4*33 | 40 |
| Surface-Round | RD2185MY12+4W | 12+4W | 70-75LM/W | ф195 | H32/H38 | 46*42.5*22 | 20 |
| Surface-Round | RD2185MY18+6W | 18+6W | 75-80LM/W | ф245 | H32/H38 | 56*45*27 | 20 |
| Surface-Square | RD2185MF3+3W | 3+3W | 45-55LM/W | 105*105 | H32/H38 | 60*22.5*25 | 50 |
| Surface-Square | RD2185MF6+3W | 6+3W | 60-70LM/W | 145*145 | H32/H38 | 46*35.4*33 | 40 |
| Surface-Square | RD2185MF12+4W | 12+4W | 70-75LM/W | 195*195 | H32/H38 | 46*42.5*22 | 20 |
| Surface-Square | RD2185MF18+6W | 18+6W | 75-80LM/W | 245*245 | H32/H38 | 56*45*27 | 20 |

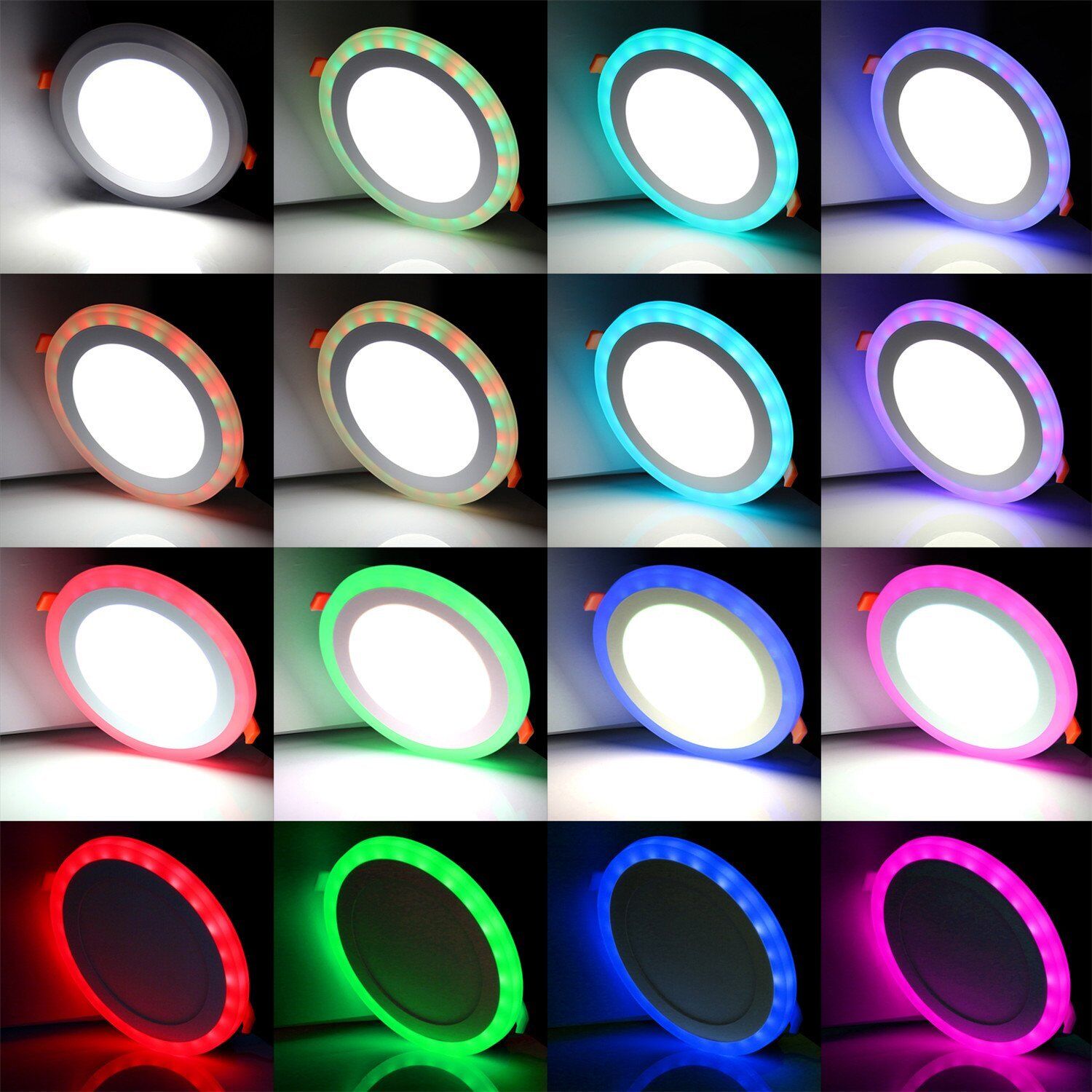

Light Color Optional
Super Brightness
Wide application in the house

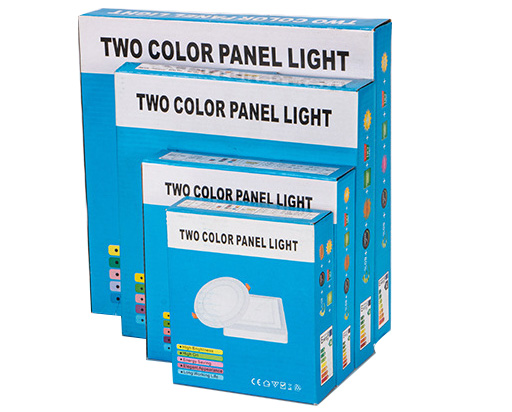

Professional Packaging
OEM printed color boxes with your company logo can be made upon request. Design service for boxes is also available.
Step One: Select the inner box packaging style
Step Two: Design your exclusive style inner box.
Step Three: Confirm the number of packing arrays & Design your exclusive master carton.
