The Professional Surface Iron Panel Light Factory
Highlight soft and comfortable Indoor Backlit Design
Mounted Iron Housing Round Surface DOB Backlit LED Panel Light
The iron LED recessed downlight is an innovative designed lighting that combines traditional recessed can housing and retrofit fixture all in one slim body fixture. Comes with Radiance DOB SMD board project , the LED recessed downlight can be easily install in different types of ceiling without having to undergo messy and complicated routing and housing reconstruction while providing you with high quality lighting every time you need.
Shape and Type Selection Support :
Product Features:
● High Transmittance: adopting high quality PMMA cover, pearly luster, transmittance reach 95%
● Can be frequent starting, no flickering and glaring; high CRI; shock-resistant.

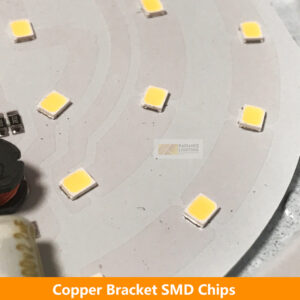

● Adopt high quality led chips, life span reach 50,000 hours

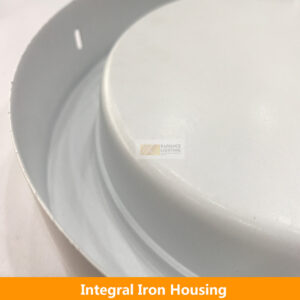

● High quality iron housing for heat dissipation, more lighter and good cooling.
● Automatic line production, higher quality.
· Input Volatage：AC85-264V
· Driver Type：DOB -No Isolated
· IP Rate：IP20
· Power Factor：> 0.5
· CRI：> RA80
· Frequency：50/60 Hz
· Beam Angle：120°
· Chip Type : SMD2835
· SDCM：<5
· Lifespan：>20000hours
· Lamp Function：Support Dimmable
· Shape：Round
· Diffuser Materials：PMMA
· Housing Materials：Iron
· Usage：Home indoor / Commercial
· Color Temperature：3000K/4000K/6500K
· Body Color：White / Black / Customized
· Working temperature：-30℃～70℃
· Relative Humidity: 10 – 90%
· Warranty：>2 Years
Product Video
Product Specification
Product Information

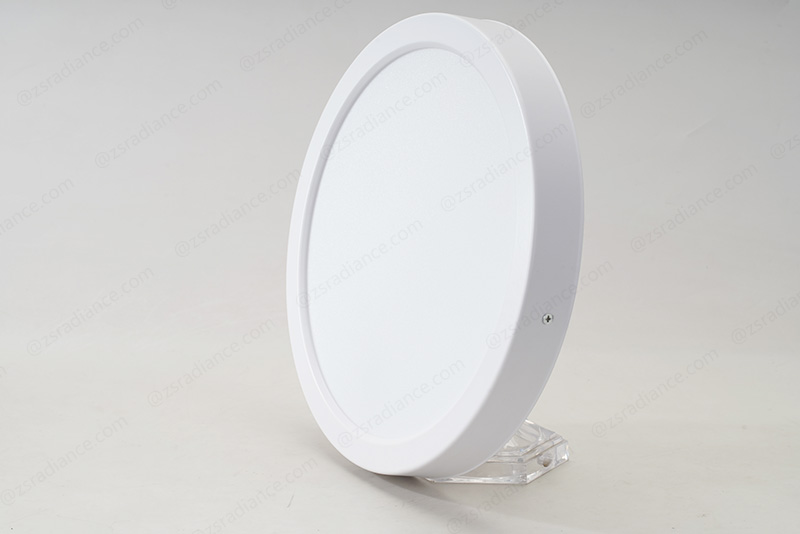

Surface - Round - Iron LED Downlight
| Type & Shape | Model NO. | Inch | Wattage （W） | Lumen （lm/w） | Housing Size （mm） | Packing Size （cm） | PCS / CTN (Pcs) |
|---|---|---|---|---|---|---|---|
| Surface-Round | RD5518-DMY18W | 6" | 18W | 80-85LM/W | φ170*H32 | 71*20.5*37.5 | 40 |
| Surface-Round | RD5524-DMY24W | 8" | 24W | 85-90LM/W | φ220*H32 | 67.5*20.5*46.5 | 30 |
| Surface-Round | RD5536-DMY36W | 12" | 36W | 85-90LM/W | φ290*H33 | 60*20.5*61 | 20 |
Product Details

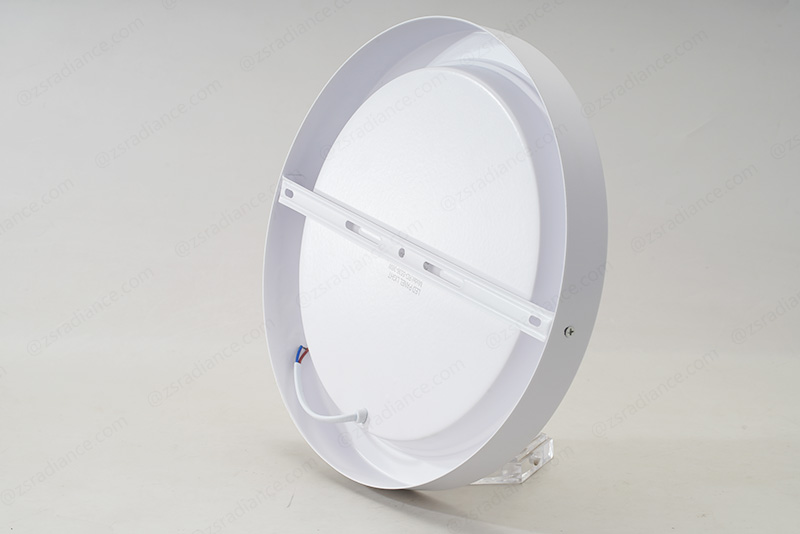

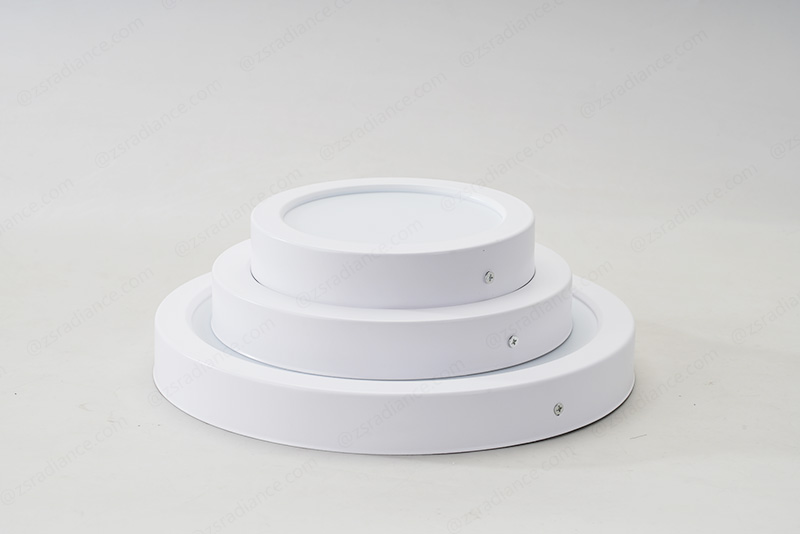

Product Show
Light Color Optional
Super Brightness
Wide application in the house
Professional Packaging
OEM printed color boxes with your company logo can be made upon request. Design service for boxes is also available.
