Your Best Full Plastic Downlight Supplier In China
Versatile, practical and designed to enhance residential spaces.
Surface Full Plastic LED DOB Panel Light / Downlight Ceiling
Radiance SMD DOB full plastic downlights / panel lights are a professional LED luminaire with a stylish outlook design. The SMD DOB full plastic downlights/panel lights come in different sizes and power ratings to offer flexibility in use. This product features a high efficiency luminaire and provides better light uniformity. Easy to install and an ideal solution for ceiling and wall mounting applications including residential areas, corridors and entrances, retail shops, and workplace areas.
Shape and Type Selection Support :
Product Features:

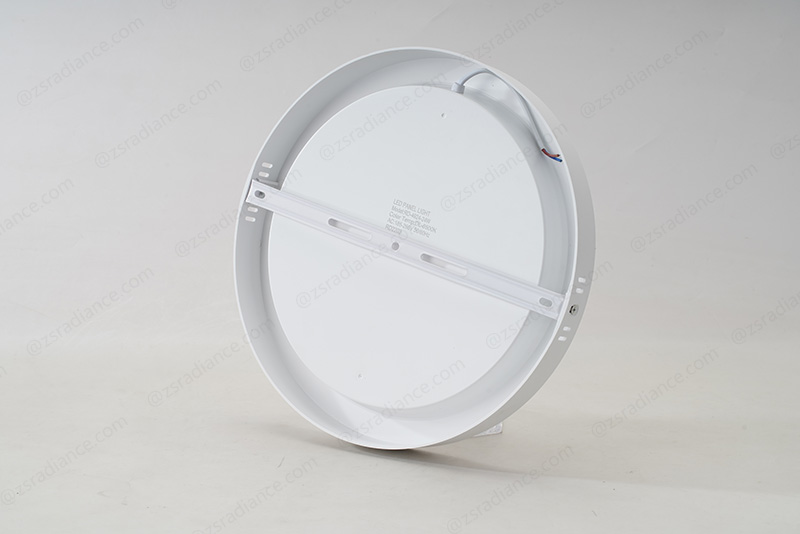

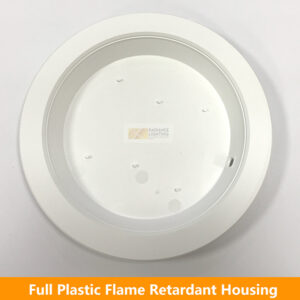

● Full plastic one piece housing design, 100% shading, complete insulation
● PP modified material housing , pass the glow wire test（With 650°C） , flame retardant V2.

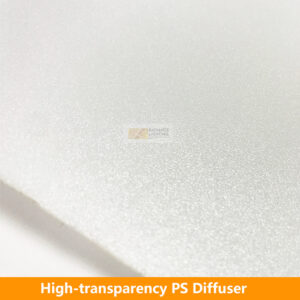

● PS material diffuser plate, back-lit design, high light transmittance

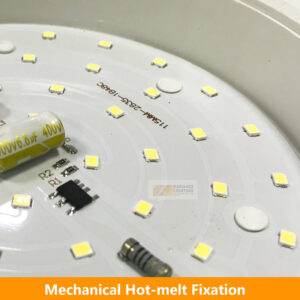

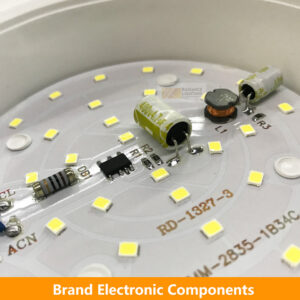

● Support internal DOB solution or external driver.
· Input Volatage：AC85-264V
· Driver Type：DOB -No Isolated
· IP Rate：IP20
· Power Factor：> 0.5
· CRI：> RA80
· Frequency：50/60 Hz
· Beam Angle：120°
· Chip Type : SMD2835
· SDCM：<5
· Lifespan：>20000hours
· Lamp Function：Support Dimmable
· Flame Retardant Rate：V2
· Diffuser Materials：PS
· Housing Materials：PP
· Usage：Home indoor / Commercial
· Color Temperature：3000K/4000K/6500K
· Body Color：White / Black / Customized
· Working temperature：-30℃～70℃
· Relative Humidity: 10 – 90%
· Warranty：>2 Years
Product Video
Product Specification
Product Information

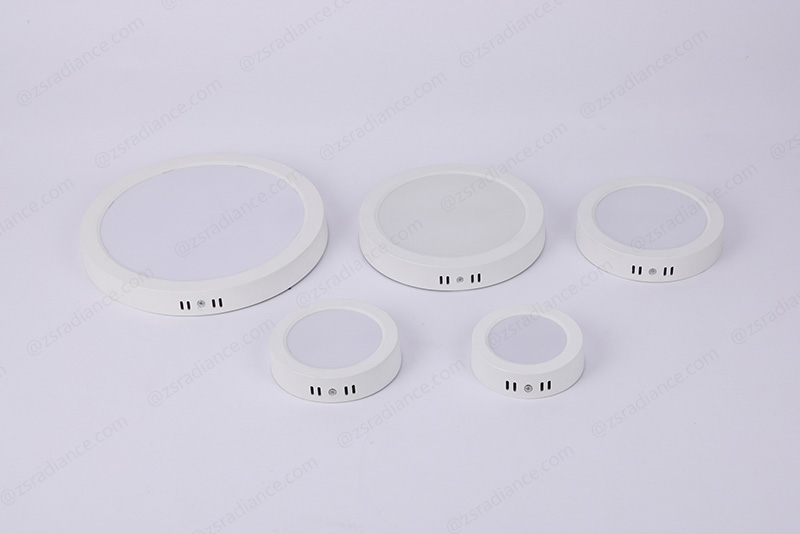

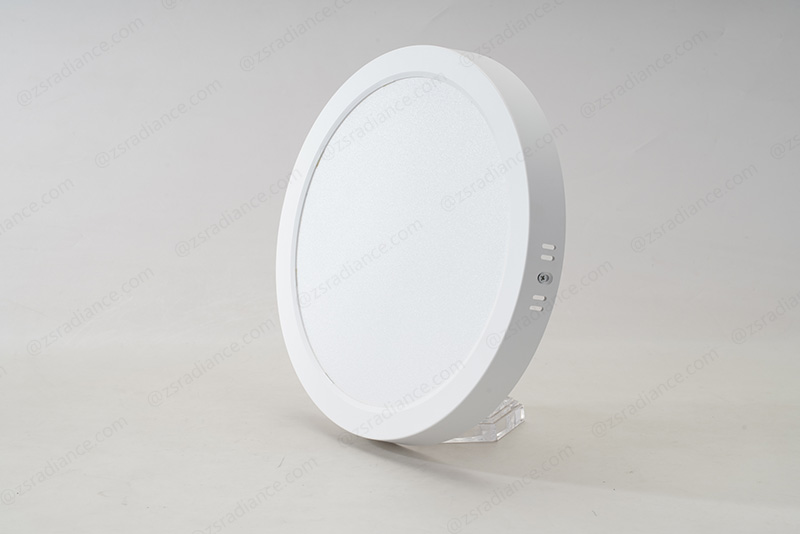

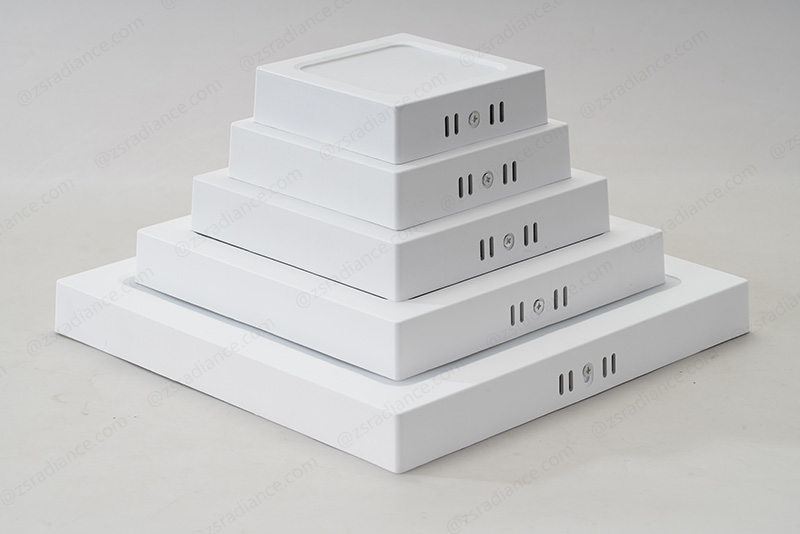

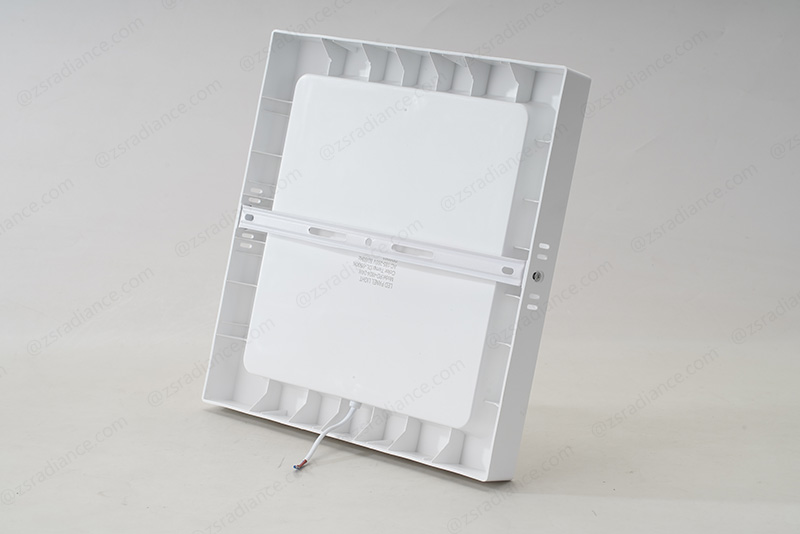

Surface - Round & Square - Plastic LED Downlight
| Type & Shape | Model NO. | Inch | Wattage （W） | Lumen （lm/w） | Housing Size （mm） | Packing Size （cm） | PCS / CTN (Pcs) |
|---|---|---|---|---|---|---|---|
| Surface-Square | RD392-06DMF06W | 3.5" | 6W | 50-60LM/W | 120*120*H32 | 67*20.5*54 | 100 |
| Surface-Square | RD392-12DMF12W | 4" | 12W | 75-80LM/W | 140*140*H32 | 59.5*20*48 | 60 |
| Surface-Square | RD392-18DMY18W | 6" | 18W | 80-85LM/W | 173*173*H32 | 73.5*20.5*38 | 40 |
| Surface-Square | RD392-24DMF24W | 8" | 24W | 85-90LM/W | 218*218*H32 | 69*19.5*47.5 | 30 |
| Surface-Square | RD392-36DMF36W | 12" | 36W | 85-90LM/W | 290*290*H32 | 61*19.5*62 | 20 |
| Surface-Round | RD392-06DMY06W | 3.5" | 6W | 50-60LM/W | 120*120*H32 | 67*20.5*54 | 100 |
| Surface-Round | RD392-12DMY12W | 4" | 12W | 75-80LM/W | 140*140*H32 | 59.5*20*48 | 60 |
| Surface-Round | RD392-18DMY18W | 6" | 18W | 80-85LM/W | 173*173*H32 | 73.5*20.5*38 | 40 |
| Surface-Round | RD392-24DMY24W | 8" | 24W | 85-90LM/W | 220*220*H32 | 69*19.5*62 | 30 |
| Surface-Round | RD392-36DMY36W | 12" | 36W | 85-90LM/W | 290*290*H32 | 61*19.5*62 | 20 |
Product Details

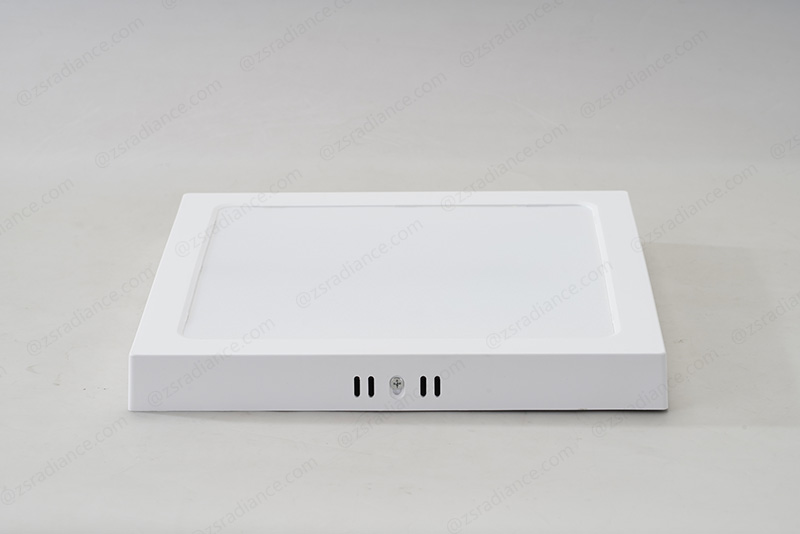

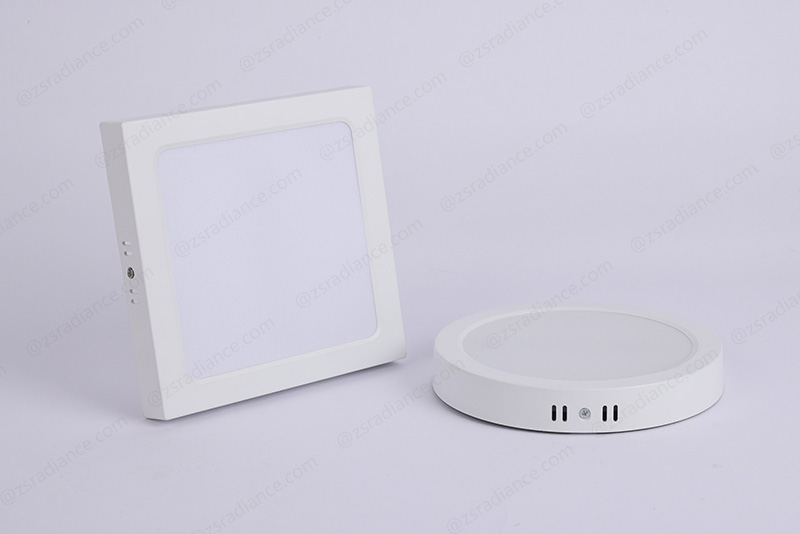

Product Show

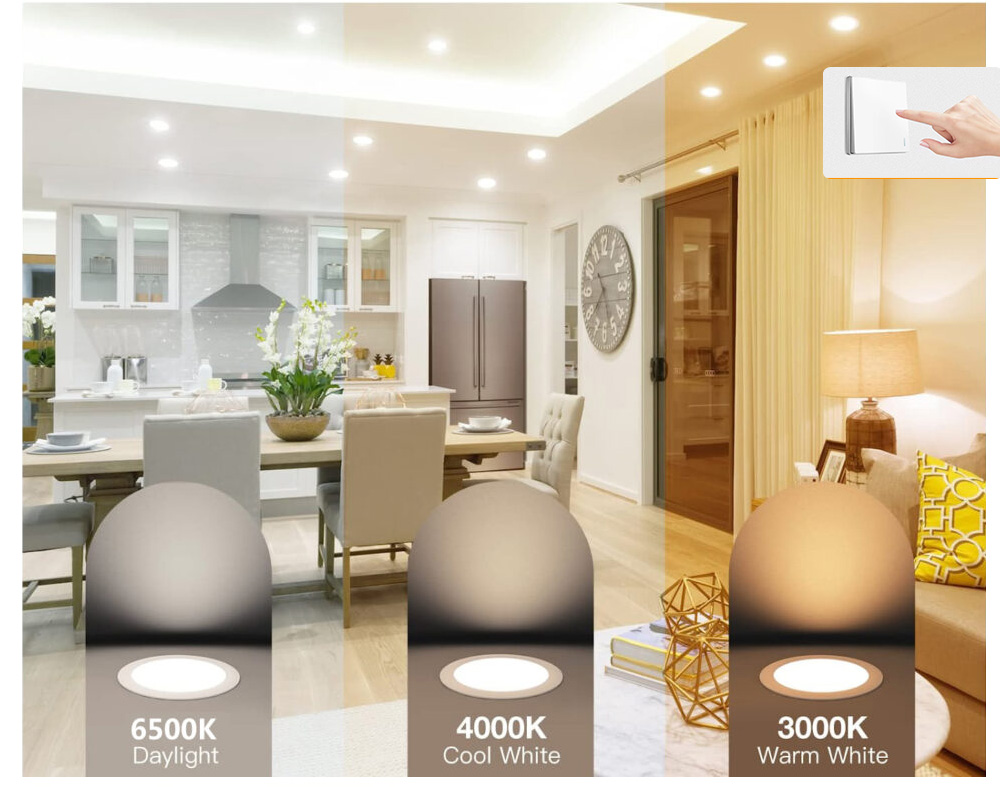

Light Color Optional
Super Brightness

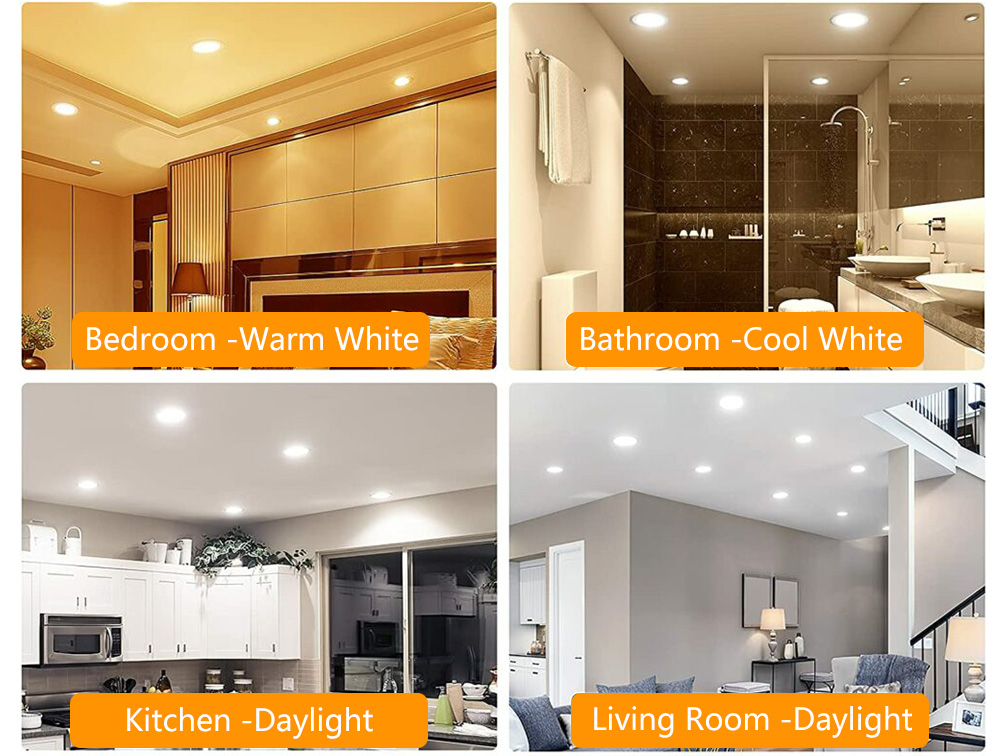

Wide application in the house

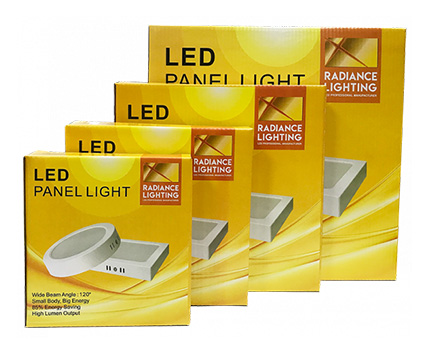

Professional Packaging
OEM printed color boxes with your company logo can be made upon request. Design service for boxes is also available.

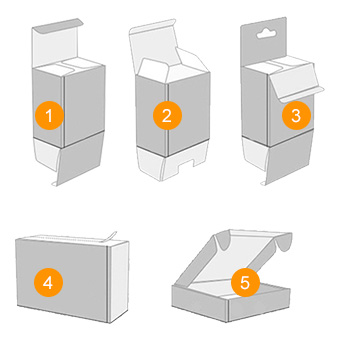

Step One: Select the inner box packaging style
Step Two: Design your exclusive style inner box.
Step Three: Confirm the number of packing arrays & Design your exclusive master carton.
