Surface Mount Technology Assembly Service From Radiance
Your Reliable SMT Service Provider In China.

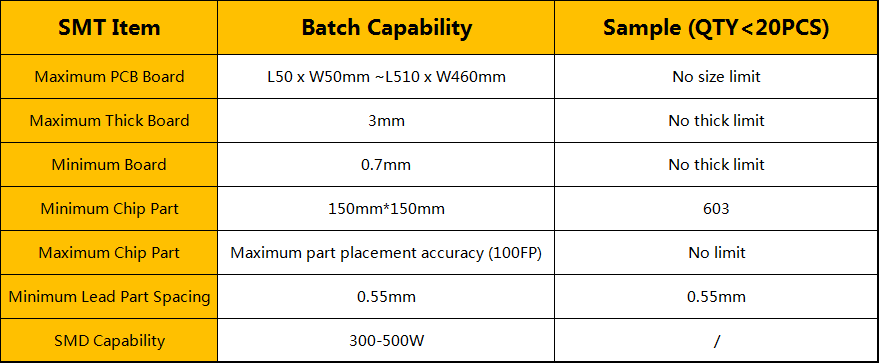

How is the SMT processing capacity in Radiance ?
Zhongshan Radiance Lighting Technology Co., Ltd. is also a professional SMT chip processing enterprise. There are 4 fully automatic high-speed SMT production lines, with a daily production capacity of 5 million points.
All the LED solution of DOB panel lights are produced and sold by ourselves. At the same time, we also undertake SMT chip processing, including proofing, small batch trial production, and mass production. Also undertake the placement of various high-precision components.
Radiance has developed different production processes according to different customers and products, which are fast and efficient, flexible in response, and fast in delivery.
How is Radiance SMT processing process ?
Inquiry and Quote
Engineer Reviewing data
Electronic components procurement
Material Counting/ Preparing / IQC check
Automatic Feeder

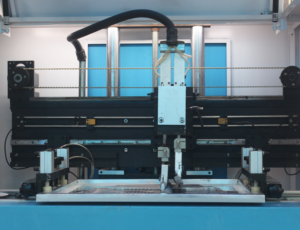

Automatic Solder Paste Printing

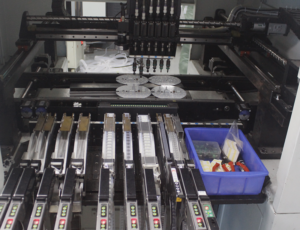

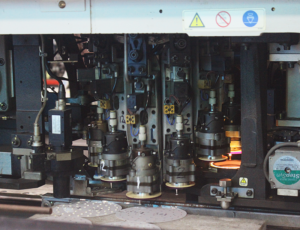

High - Speed SMT Assebbly
Multi-Zone High Temperature Reflow Soldering
Finished Product Inspection
Packing & Stockpiling
SMT Product Case
Watch Radiance SMT Department Live Streaming

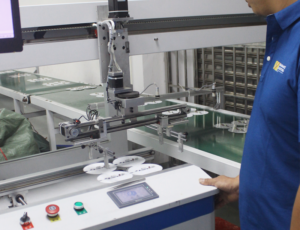

Take You To Know The Composition Auto SMT Production Line In Radiance
Radiance SMT Management System
The quality of the material determines the actual service life of the product. All components and materials are strictly inspected before they can be used in the SMT production line
Professional solder paste detector, 3-dimensional detection of the height, area, volume, displacement and other aspects of the tin point.Avoid the problems of less tin, more tin, missing printing, etc. in smt processing, and ensure the accuracy of solder paste printing

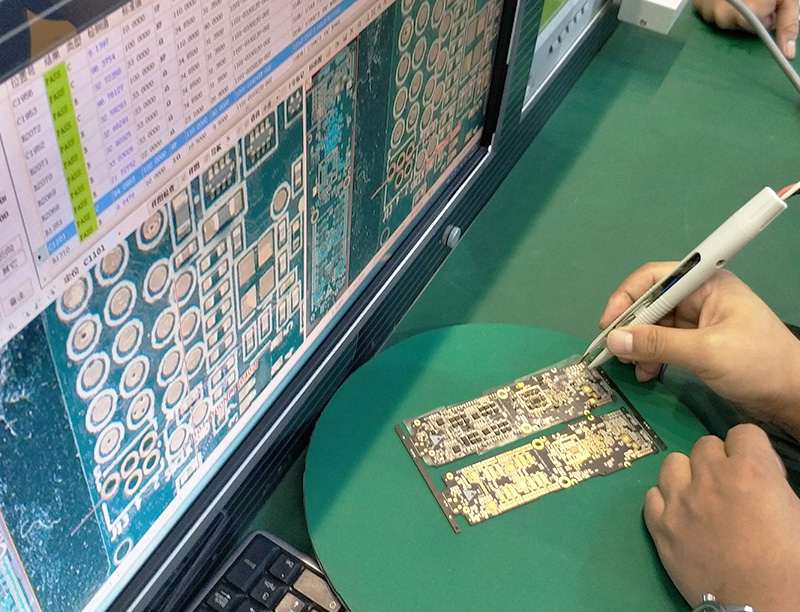

Refer to the engineering drawings and BOM list, measure and inspect each material of the first board to ensure that the components attached to the production model are consistent with the engineering drawings and BOM

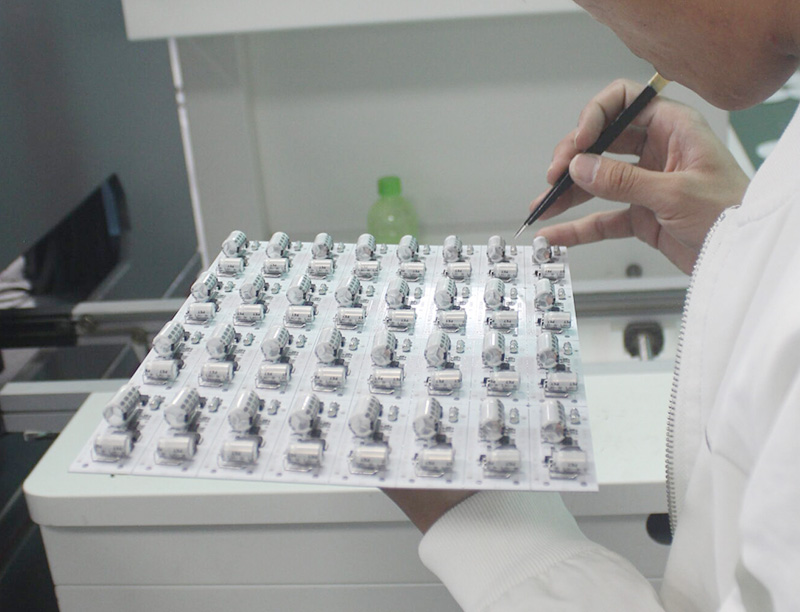

Referring to the Bom data, measure and test each material of the first board to ensure that the components attached to the production model during SMT processing are completely in line with customer requirements, preventing defects from flowing into the next process
Before DIP plug-in, training and explanation will be given to the plug-in points with special components with direction or pins, and during the DIP plug-in process, quality inspectors will be arranged to conduct uninterrupted inspections to ensure the plug-in quality.
The quality of the material determines the actual service life of the product. All components and materials are strictly inspected before they can be used in the SMT production line
The Advantages Of SMT In Radiance‘s Product
· Realize Miniaturization
The geometric size and volume occupied by SMT electronic components are much smaller than that of through-hole interpolation components, which can be generally reduced by 60%~70%, and some components can even be reduced by 90% in size and volume. At the same time, the weight of components can be reduced by 60%~90%.
· High Signal Transmission Speed
SMT assembled components are not only compact in structure, but also high in safety density. SMT assembled PCBs can realize high speed signal transmission due to short circuit and small delay. At the same time, SMT assembled PCBs are more resistant to vibration and impact. This is of great significance to realize ultra-high speed operation of electronic equipment.
· SMT is beneficial to automatic production, improving yield and production efficiency.
The standardization, serialization and consistency of welding conditions of chip components make SMT highly automatic. The component failure caused by welding process will be greatly reduced and the reliability will be improved.
· Good High Frequency Effects
Because the components have no lead or short lead, the distributed parameters of the circuit are naturally reduced and the RF interference is reduced.
· Low Materials Cost
Due to the improvement of production equipment efficiency and the reduction of packaging material consumption, the packaging cost of most SMT components has been lower than that of THT components with the same type and function. Consequently, the sales price of SMT components is lower than that of THT components.
· Simplify the Production Process & Reduce the Production Cost.
When mounting on the PCBs, the leads of components need not be bent, shaped or cut short, so that the whole process is shortened and the production efficiency is improved. The processing cost of the same functional circuit is lower than that of through-hole interpolation, which can generally reduce the total production cost by 30%~50%.
