The Edge-lit Die-casting Aluminium Panel Light Source Manufacturer
Full series available to replace traditional downlights

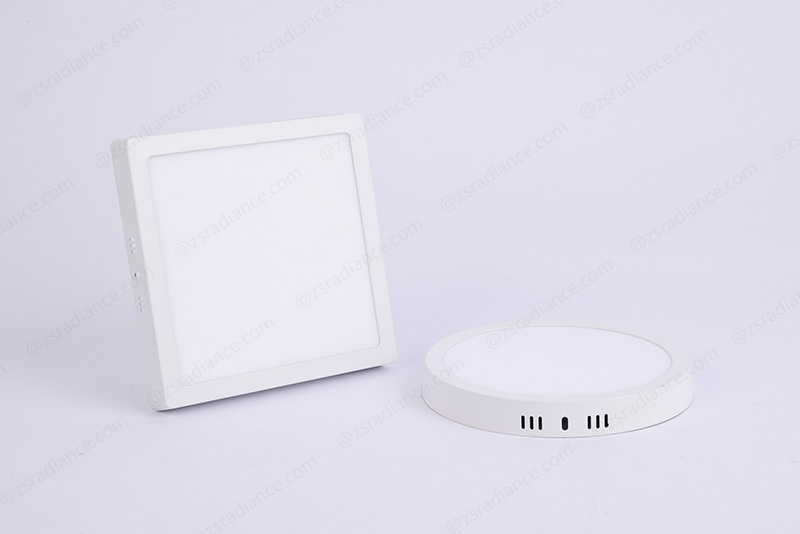

Ultra Slim Aluminum Edge-lit Ceiling Led Panel Light
Aluminum slim panel light series is a veteran in the space of edge lit panel with a timeless classic design . Separate driver & housing gives it a long lasting easy to install & maintain feature that is loved by all customers.This series is slim enough to fit in any thickness of fall ceiling & the edge lit feature gives it an anti glare property that is soothing to the eye. The strong combination of aluminium die cast body & poly carbonate diffuser & LGP make the product long lasting . The product is built to sustain high voltage fluctuations . Its recommended for residential , showroom & other multipurpose uses . The product is a must buy for a customer looking for a timeless association & the better light distribution.
Shape and Type Selection Support :
Product Features:
● Designed with a double-sided frosted plate, providing a more uniform and consistent light output.
● Low-power large chip LEDs operate at a low temperature, it’s can meet energy-efficient and environmentally friendly.
● The light guide plate is made from imported laser dot PMMA, providing high stability and a uniform luminous surface with no dark spots.
● Designed with a bending, powder-sprayed back cover, providing a consistent whole effect and preventing light-leaking.
· Input Volatage：AC85-264V
· Driver Type：Isolated
· IP Rate：IP20
· Power Factor：> 0.5
· CRI：> RA80
· Frequency：50/60 Hz
· Beam Angle：120°

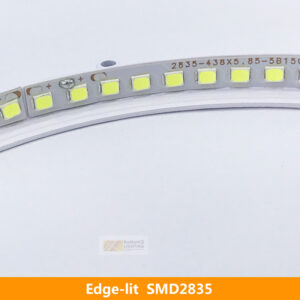

· Chip Type : SMD2835
· SDCM：<5
· Lifespan：>20000hours
· Lamp Function：Support Dimmable
· Flame Retardant Rate：V2
· Diffuser Materials：PS
· Housing Materials：PP
· Usage：Home indoor / Commercial
· Color Temperature：3000K/4000K/6500K
· Body Color：White / Black / Customized
· Working temperature：-30℃～70℃
· Relative Humidity: 10 – 90%
· Warranty：>2 Years
Product Video
Product Specification

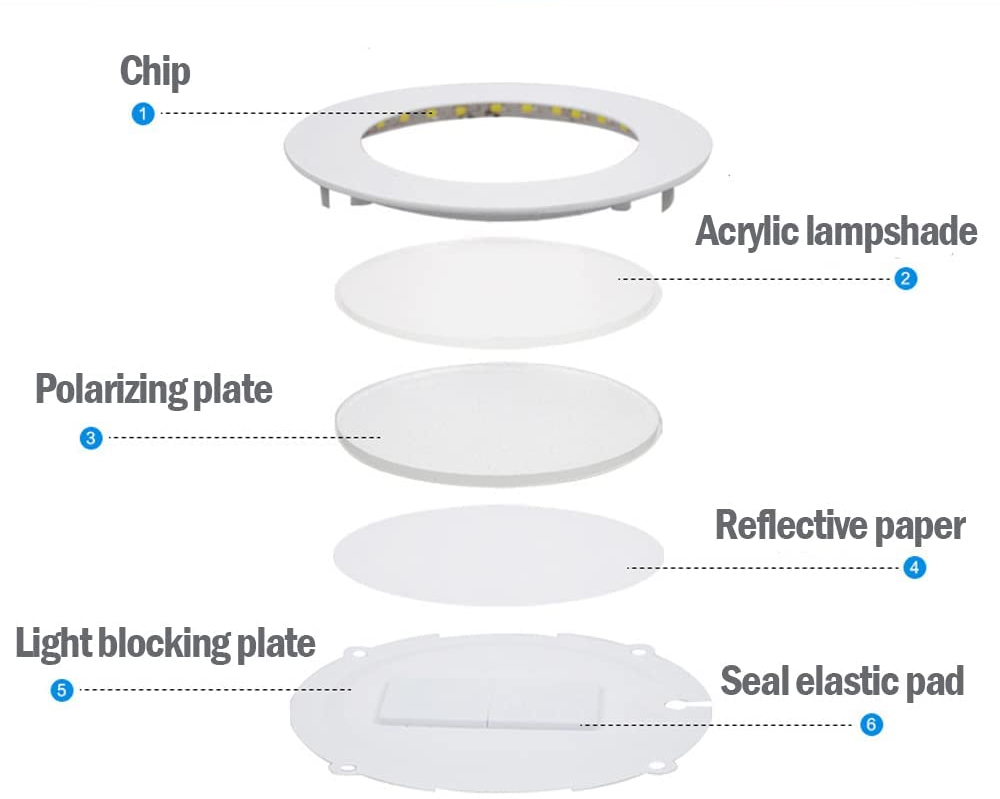

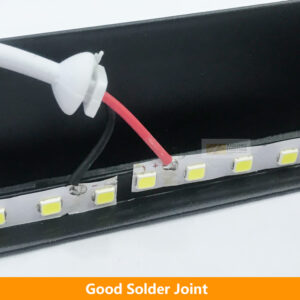

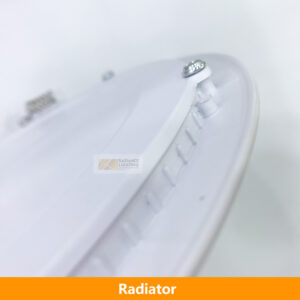

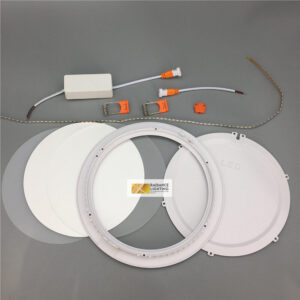

Product Details
Product Show & Information

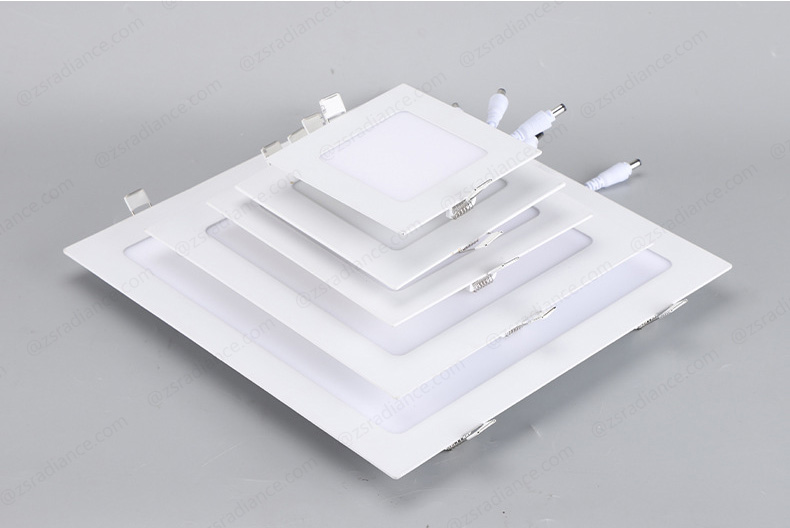

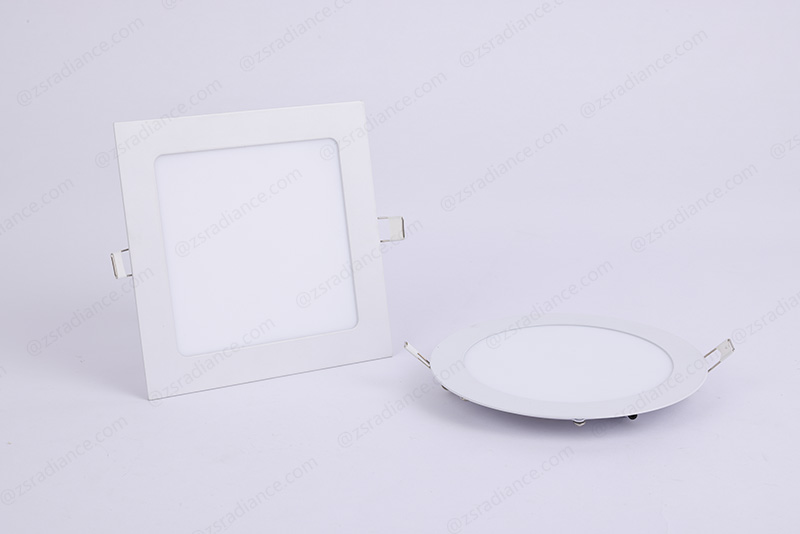

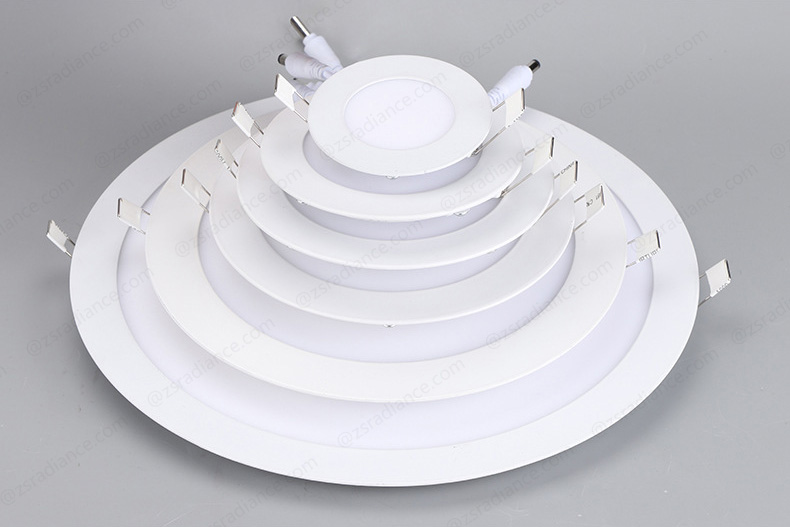

Recessed - Slim -Round & Square -Ultra-thin LED Recessed Aluminum LED Downlight
| Type & Shape | Model NO. | Wattage （W） | Lumen （lm/w） | Housing Size （mm） | Cutting Size （mm） | Packing Size （cm） | PCS / CTN (Pcs) |
|---|---|---|---|---|---|---|---|
| Recessed-Round | RD2032AY3W | 3W | 50-60LM/W | ф85 | φ70 | 63*30.5*27.5 | 100 |
| Recessed-Round | RD2032AY6W | 6W | 60-70LM/W | ф120 | φ100 | 45.5*27*27 | 40 |
| Recessed-Round | RD2032AY9W | 9W | 70-75LM/W | ф140 | φ120 | 45.5*38*38 | 40 |
| Recessed-Round | RD2032AY12W | 12W | 75-80LM/W | ф170 | φ155 | 45.5*38*38 | 40 |
| Recessed-Round | RD2032AY15W | 15W | 80-85LM/W | ф200 | φ170 | 48*25*44.5 | 30 |
| Recessed-Round | RD2032AY18W | 18W | 80-85LM/W | ф220 | φ200 | 48*25*44.5 | 20 |
| Recessed-Round | RD2032AY24W | 24W | 80-85LM/W | ф300 | φ280 | 46.5*32*62.5 | 20 |
| Recessed-Square | RD2032AF3W | 3W | 50-60LM/W | 85*85 | 70*70 | 63*30.5*27.5 | 100 |
| Recessed-Square | RD2032AF6W | 6W | 60-70LM/W | 120*120 | 100*100 | 45.5*27*27 | 40 |
| Recessed-Square | RD2032AF9W | 9W | 70-75LM/W | 140*140 | 120*120 | 45.5*38*38 | 40 |
| Recessed-Square | RD2032AF12W | 12W | 75-80LM/W | 170*170 | 155*155 | 45.5*38*38 | 40 |
| Recessed-Square | RD2032AF15W | 15W | 70-75LM/W | 200*200 | 170*170 | 48*25*44.5 | 30 |
| Recessed-Square | RD2032AF18W | 18W | 75-80LM/W | 220*220 | 200*200 | 48*25*44.5 | 20 |
| Recessed-Square | RD2032AF24W | 24W | 80-85LM/W | 300*300 | 280*280 | 46.5*32*62.5 | 20 |

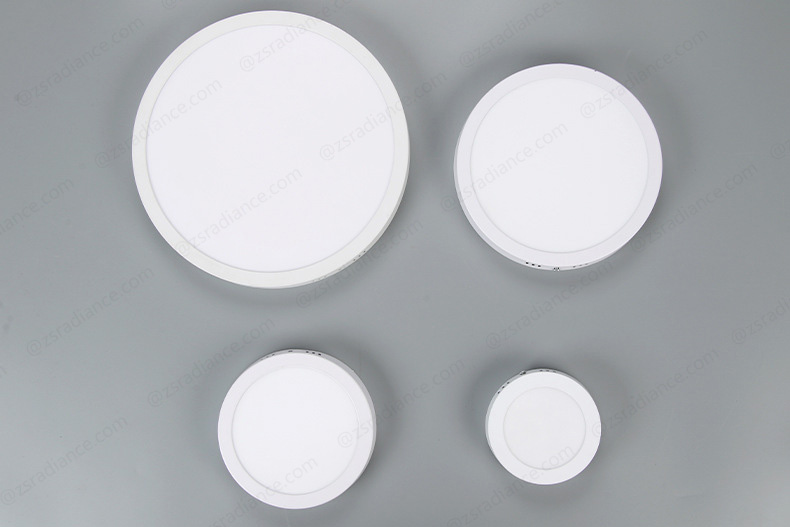

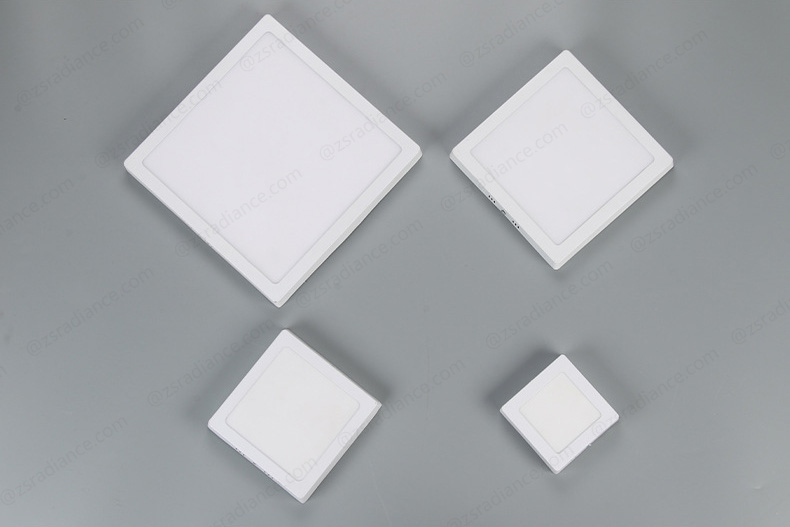

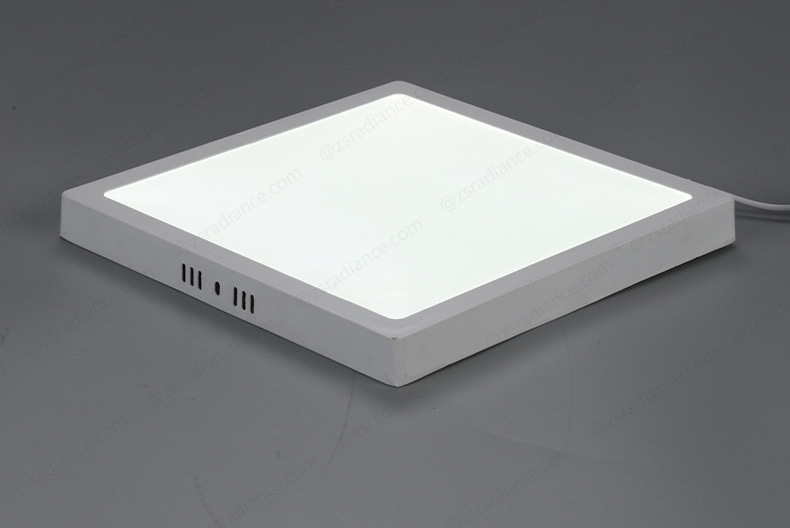

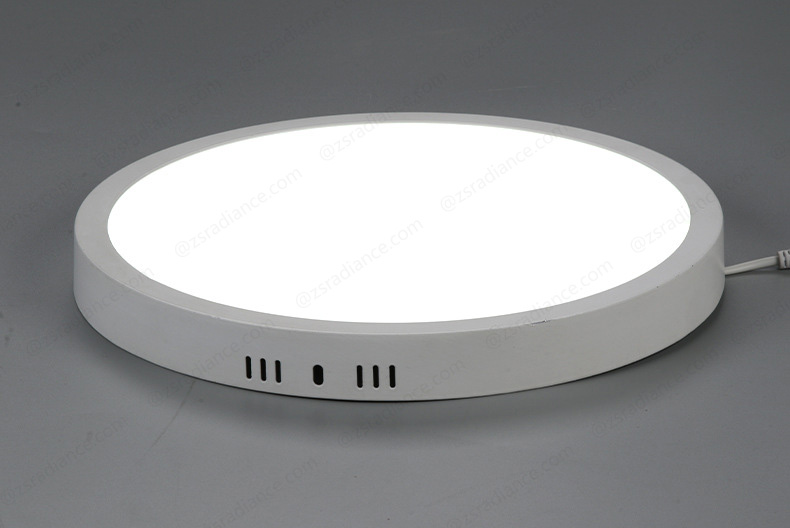

Surface - Slim -Round & Square -Ultra-thin LED Surface Aluminum LED Downlight
| Type & Shape | Model NO. | Wattage （W） | Lumen （lm/w） | Housing Size （mm） | Height （mm） | Packing Size （cm） | PCS / CTN (Pcs) |
|---|---|---|---|---|---|---|---|
| Surface-Round | RD2032MY3W | 3W | 50-60LM/W | ф85 | H24/H28/H32/H35/H38 | 63*30.5*27.5 | 100 |
| Surface-Round | RD2032MY6W | 6W | 60-70LM/W | ф120 | H24/H28/H32/H35/H38 | 45.5*27*27 | 40 |
| Surface-Round | RD2032MY9W | 9W | 70-75LM/W | ф140 | H24/H28/H32/H35/H38 | 45.5*38*38 | 40 |
| Surface-Round | RD2032MY12W | 12W | 75-80LM/W | ф170 | H24/H28/H32/H35/H38 | 45.5*38*38 | 40 |
| Surface-Round | RD2032MY15W | 15W | 80-85LM/W | ф200 | H24/H28/H32/H35/H38 | 48*25*44.5 | 30 |
| Surface-Round | RD2032MY18W | 18W | 80-85LM/W | ф220 | H24/H28/H32/H35/H38 | 48*25*44.5 | 20 |
| Surface-Round | RD2032MY24W | 24W | 80-85LM/W | ф300 | H24/H28/H32/H35/H38 | 46.5*32*62.5 | 20 |
| Surface-Square | RD2032MF3W | 3W | 50-60LM/W | 85*85 | H24/H28/H32/H35/H38 | 63*30.5*27.5 | 100 |
| Surface-Square | RD2032MF6W | 6W | 60-70LM/W | 120*120 | H24/H28/H32/H35/H38 | 45.5*27*27 | 40 |
| Surface-Square | RD2032MF9W | 9W | 70-75LM/W | 140*140 | H24/H28/H32/H35/H38 | 45.5*38*38 | 40 |
| Surface-Square | RD2032MF12W | 12W | 75-80LM/W | 170*170 | H24/H28/H32/H35/H38 | 45.5*38*38 | 40 |
| Surface-Square | RD2032MF15W | 15W | 70-75LM/W | 200*200 | H24/H28/H32/H35/H38 | 48*25*44.5 | 30 |
| Surface-Square | RD2032MF18W | 18W | 75-80LM/W | 220*220 | H24/H28/H32/H35/H38 | 48*25*44.5 | 20 |
| Surface-Square | RD2032MF24W | 24W | 80-85LM/W | 300*300 | H24/H28/H32/H35/H38 | 46.5*32*62.5 | 20 |
Light Color Optional
Super Brightness
Wide application in the house

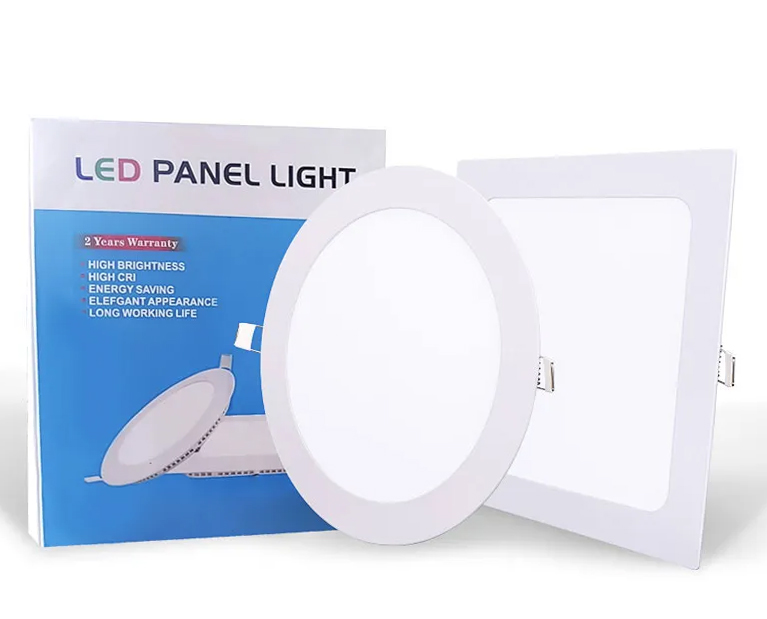

Professional Packaging
OEM printed color boxes with your company logo can be made upon request. Design service for boxes is also available.
